Project Type: Co-op (Optikos)
Duration: November 2021
Skills Used: SolidWorks

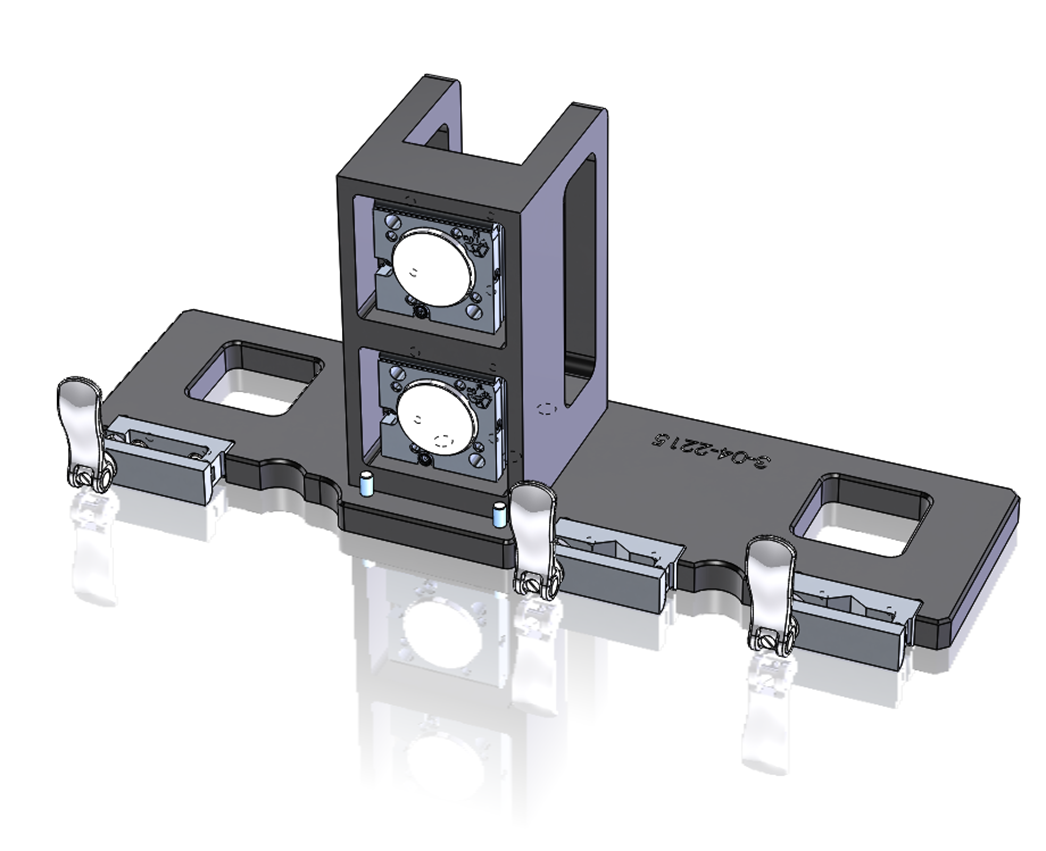

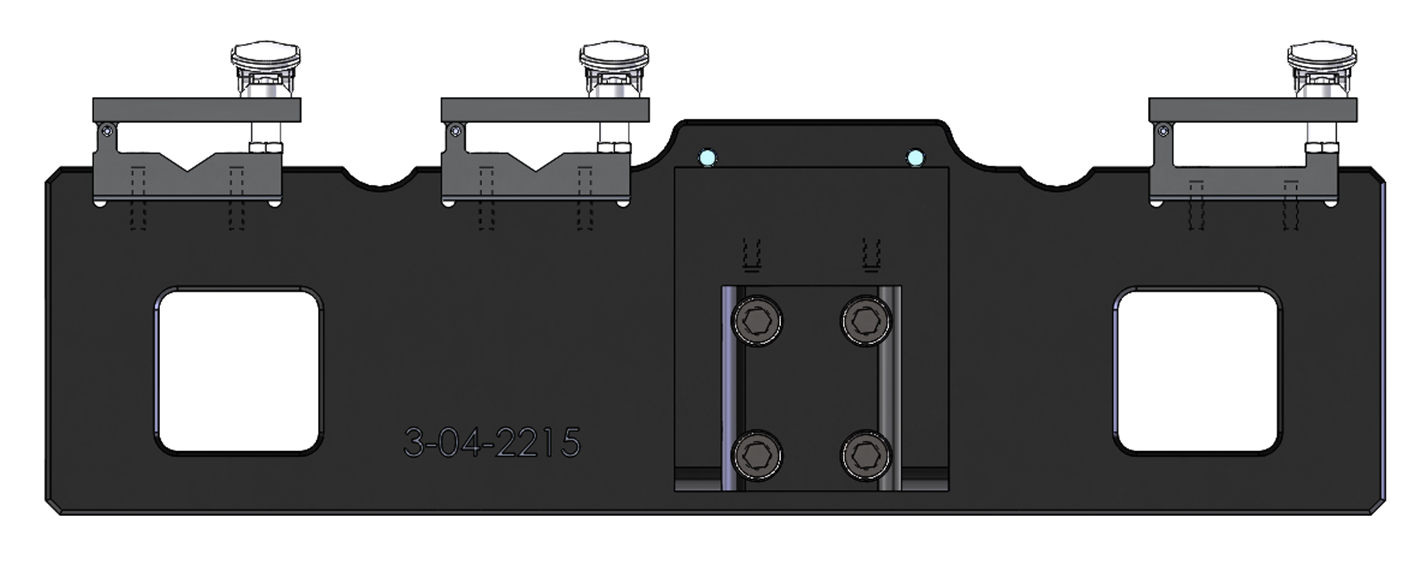

Description: Alignment fixture for aligning carriages on rails along optical axis. Drops onto pins on carriages and clamps in place for repeatable alignment.
User-oriented optical rail carriage alignment tool
